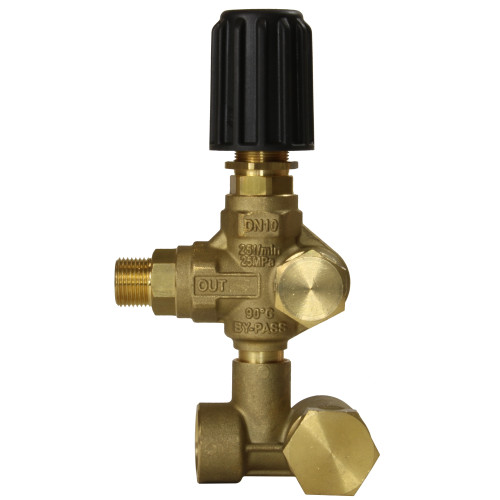

Udor UB17 Unloader Valve 171063666 - PA VB35

Direct fitting to the pump by means of two hollow screws - Sturdy steel and brass construction - Adjustable locknut to control the max pressure - Easy maintenance - Hexagonal shaped check valve to avoid jamming. - Possibility to fit a venturi injector, on delivery, for chemicals.

To suit Udor Pump series PNC

Inlet: 3/8" M

Outlet: 3/8" M

Bypass: 1/2" M

Max Press: 250 Bar

Max Flow: 25 L/Min

Max Temp: 90°C
