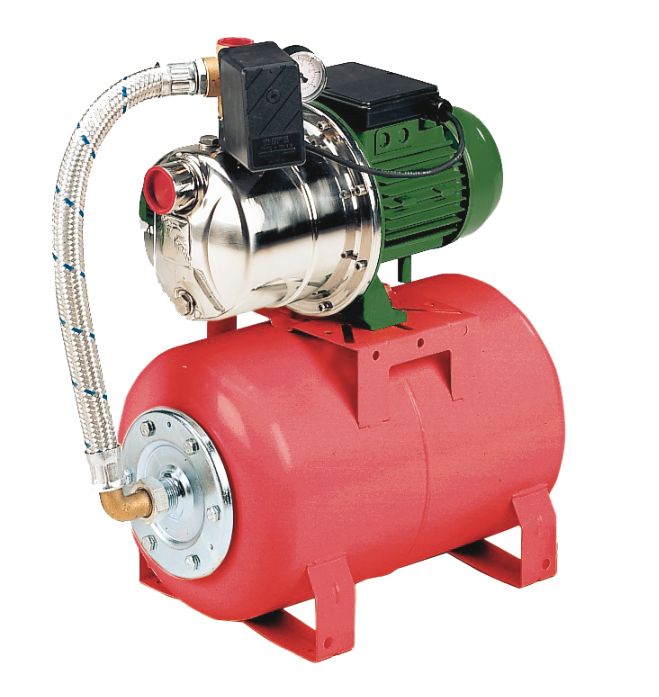

Sea Land Jexi Centrifugal Booster Sets

Sea Land Jexi Centrifugal Booster Sets



SURFACE PUMPS - SELF-PRIMING STAINLESS STEEL CENTRIFUGAL ELECTRIC PUMPS

Sea Land Jexi Series Centrifugal Pumps. Self-priming stainless steel pumps. From 42 to 54m max head. From 40 to 60 Lpm max flow. 230 Volt. S1 continuous duty motors.

The self-priming centrifugal electric pumps series JEXI have been designed to pump clean water from wells, even if mixed with gas
Maximum suction up to 8-9 m
Liquid temperature not higher than 35 °C for domestic use (CEI EN 60335-2-41) or 60 °C for other use, while the ambient temperature must not be higher than 40 °C
Flow rate up to~4m3/h Heads up to~55m

TECHNICAL FEATURES
Pump body: stainless steel Aisi 304
Motor bracket in die casting aluminium UNI 5076 Diffuser, Nozzle & Venturi tube: Techno-polymer
Impeller: stainless steel Aisi 304 (Techno-polymer JEXI 62-82-100)
Pump shaft: stainless steel Aisi 304 (Aisi 420F JEXI 62-82-100)
Mechanical seal: carbon-ceramics

MOTOR
The control motors are asynchronous, squirrel cage-type, closed, with external ventilation
Incorporated motor protection and capacitor always on, for
single-phase models
The motor protection for three-phase models must be installed by the customer. Equipment compliant with current standards should be used
Class of insulation:F-service:S1-Degree of protection: IP 44
Terminal board protection: IP 54
