Patay Pump SD60 Skipper Bilge Pump Bulkhead Mounted Pump A2020. Diaphragm/Seal Material - Nitrile (Buna-N) / NBR. Marine Pump.

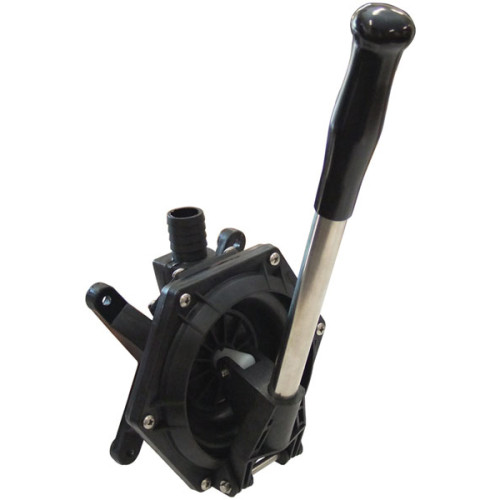

This Patay SD60 Skipper compact, lightweight pump has been designed for surface mounting on the deck or bulkhead. The body and ports can be positioned in 96 different ways for maximum flexibility of installation. Simple, reliable and inexpensive, this pump will withstand whatever the elements have to throw at it and will give years of trouble free use.

The Patay SD60 Pump is made from tough polypropylene with stainless steel fastenings. Nitrile diaphragms are fitted as standard. This version features a removable 12" stainless handle.

The pump is supplied with both 1" and 1 1/2" (I/D) hose connectors.

PUMP DATA
Code - A2020
Capacity - 80 Lpm
Lift - 6m
Head - 4.5m
Connections - for either 1” (25mm) or 1 1/2” (38mm) hose
Body Material - Polypropylene
Fixing Material - Stainless Steel
Diaphragm/Seal Material - Nitrile (Buna-N) / NBR
Weight - 1.1
Dimensions: 250mm long x 170mm wide x 120mm high, with 260mm handle (nominal dimensions for variable pump configuration).

ACCESSORIES AND SERVICE REPAIR KITS
38mm bore, spiral reinforced PVC hose – Stock Reference D1135 or 25mm bore, spiral reinforced PVC hose – Stock Reference D1136
(Recommended for all suction purposes as will not kink)
Service Kit Available – S1851
