SURFACE SEMI-TRASH WATER PUMP WITH CRASH FRAME

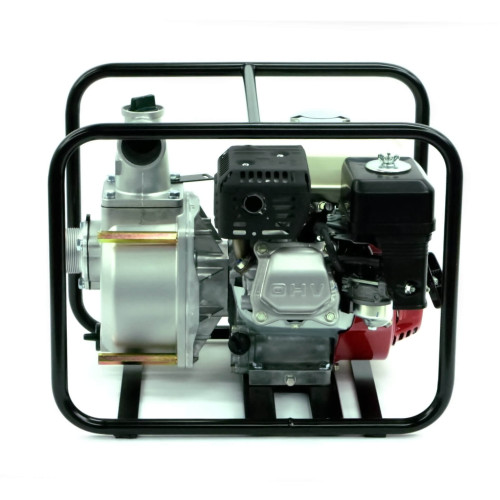

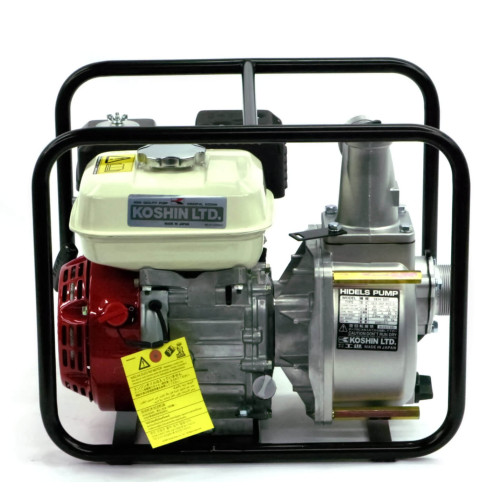

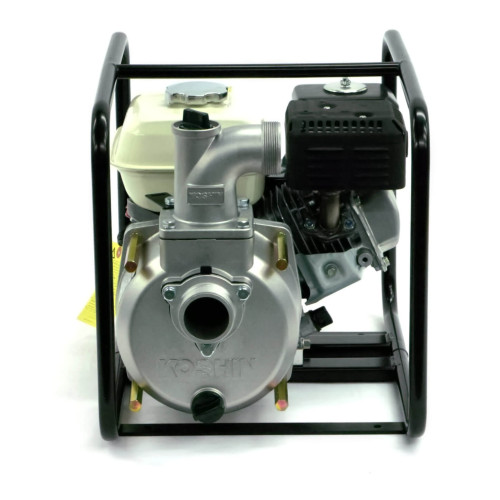

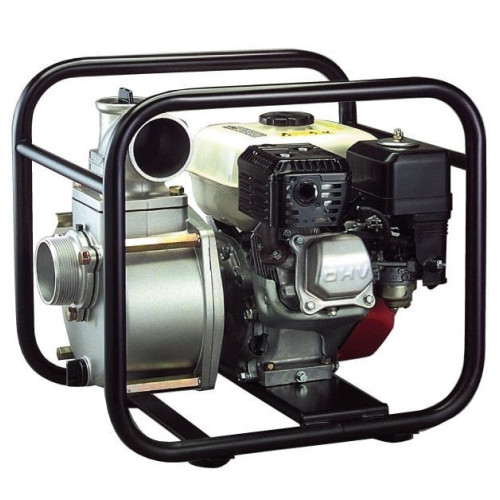

Koshin STH-50X Semi-Trash Water Pump Powered by a Honda GX120 Petrol Engine. Water pump that is ideal for water applications with dirt particles up to 8mm

CHARACTERISTICS
Guaranteed suction height of 8 meters at 0m above sea level
Silicon carbide mechanical seal. 4-5 times more resistant than standard carbon-ceramic mechanical seal.
Nodular cast iron (FCD) for impeller and volute casing provides 10 times more erosion resistance than regular cast iron.

PUMP DATA
Connection Diameter - 50mm (2")
Connection thread - Inner pipe thread BSP or NPT
Total head - 29m
Max. suction lift - 8m
Delivery volume - 600 Lpm
Material for mechanical seal - Sic (Silicon Carbide) x Sic
Volute material - Spheroidal graphite iron castings (FCD450)

ENGINE DATA
Type - Forced air-cooled 4-stroke gasoline
Model - Honda GX120
Displacement - 122 ccm
Rated output - 2.1 kW (2.9 PS) / 3600 rpm
Max. output - 2.4 kW (3.3 PS) / 3600 rpm
Fuel - Automotive unleaded gasoline
Fuel tank capacity - 2.0 L
Continuous operating time - Approx 2 hrs
Starting method - Recoil starter

STANDARD ACCESSORIES
1 Strainer
2 Hose couplings
3 Hose bands
1 Engine tool set
1 Spanner

SIZE AND WEIGHT
Net weight - 23 kg
Gross weight - 25 kg
Dimensions L X W X H (cm) - 50 x 39.5 x 41.5
