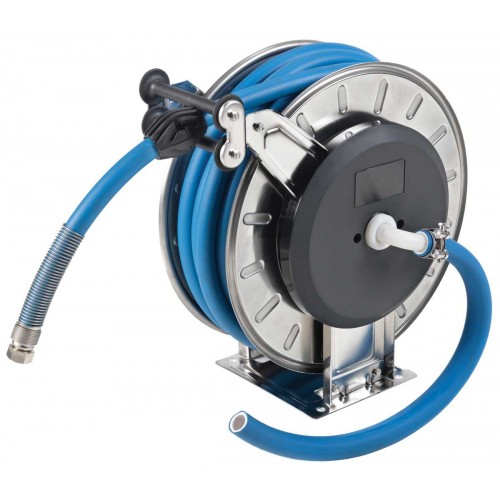

Faicom VGLX Stainless Steel Retractable Hose Reel

The hose reels series VGLX are mainly used for cleaning operations with water and detergents by flexible hoses up to 1” diameter.

The hose reels rewind automatically the hose by a spring located in the drum. The hose can be stopped at the desired length. Thanks to the structure made of stainless steel type AISI 304, these hose reels are the most suitable for environments requiring a good resistance to corrosion and particularly food factories. They can be used in big kitchens, slaughter houses, dairies, chemical and pharmaceutics industries, swimming pools.

The special open construction allows an easy assembly and replacement of the hose and permits control of the rewinding. The hose-guide arms can be fixed in three different positions according to the hose reel installation. The range can be divided into different models depending on hose diameters and lengths. At request, models equipped with special hoses can be supplied.

Optional: revolving stand.

15m 19mm id hose supplied

10 Bar max pressure

80°C max temperature

Adjustable angle hose feed

AISI 304 stainless steel

Stainproof hose

3/4"BSPF inlet

3/4"BSPF outlet
