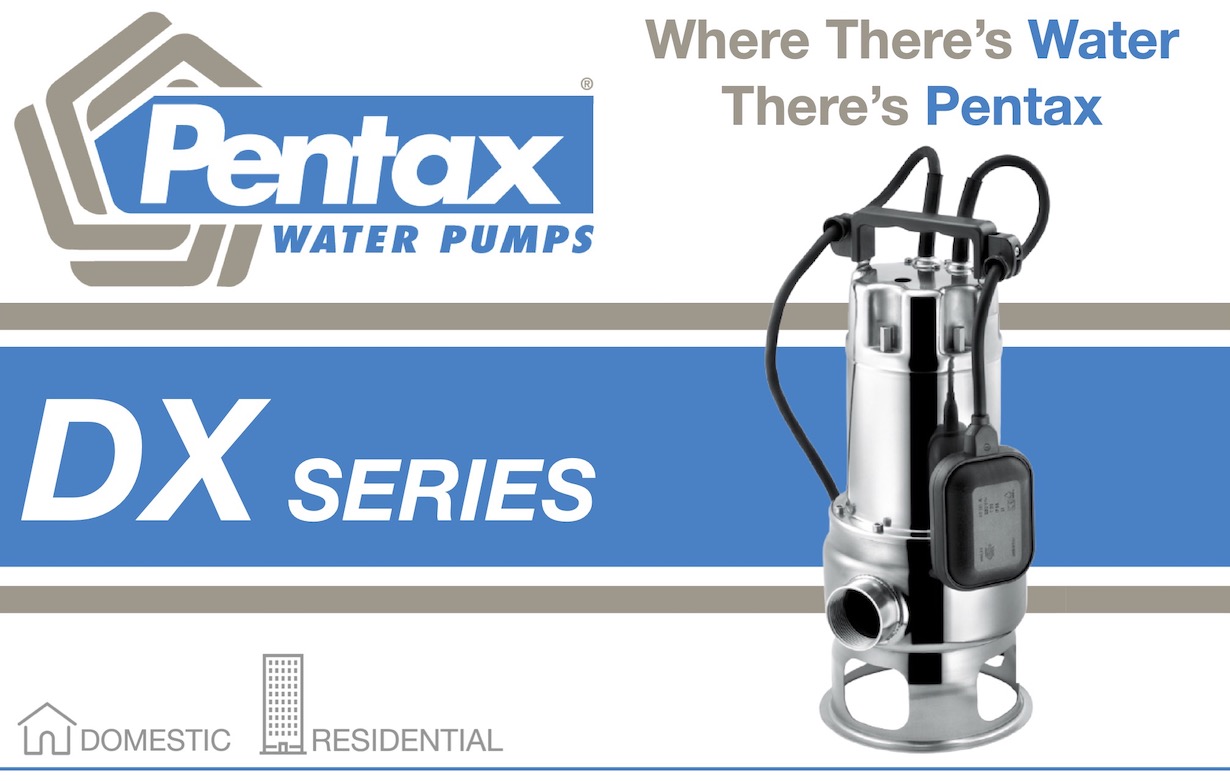

Pentax DX Stainless Steel Submersible Vortex Water Pumps

Pentax DX Stainless Steel Submersible Vortex Water Pumps


Pentax DX Stainless Steel Submersible Vortex Water Pumps

Drainage pump for rainwater with set-back Vortex type stainless steel impeller, suitable for pumping liquids with suspended solids; ideal for civil and household applications.

CONSTRUCTION FEATURES
Pump body - Stainless steel with opening 1” 1/2 or  2”
Impeller - Stainless steel set-back vortex
Shell, motor cover, base support - Stainless steel
Mechanical seal - Double seal with oil barrier, silicon carbide on pump side, sealing ring on motor side
Motor shaft - Stainless steel AISI 430
Passage of solids - Ø max 28 mm
Liquid temperature -  0 - 40 °C
Cable - H07 RNF 10 metres
Max. depth of immersion - 5 metres

MOTOR
2 pole induction motor - 3~230/400v-50Hz 1~230v-50Hz with thermal protection
Insulation class -F
Protection - IP68
