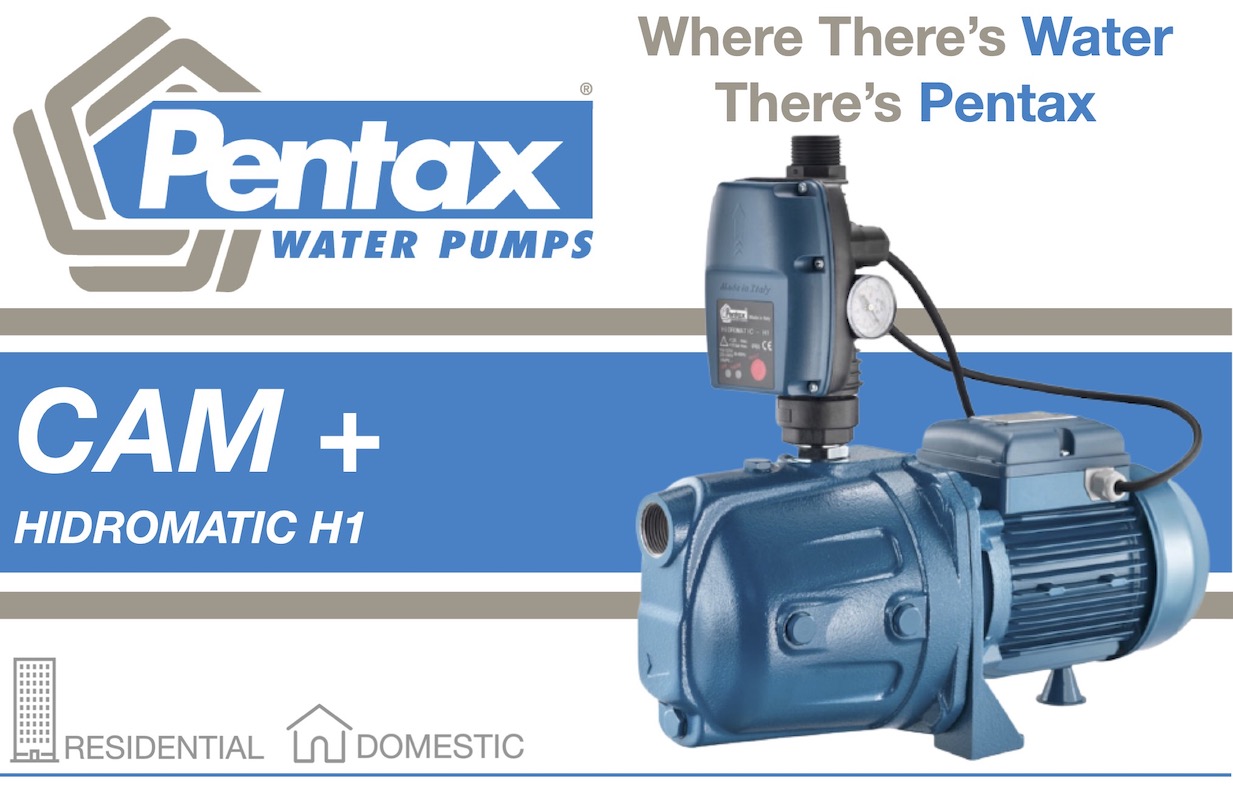

  • Pentax CAM 100 Pump with Hidromatic H1 Electronic Flow Control 230V


Automatic working pressure systems build up with centrifugal self-priming pumps. Each set is ready for installation is made by a pump and a Hidromatic H1 pump controller which is a complete replacement of the traditional water system set consisting of a pressure switch and tank. The control of the pump is started after a pressure decrease (taps opening) and stopping when the water flow is interrupted at the maximum pressure level of the pump (taps closing). Protection against dry running.

PUMP CONSTRUCTION FEATURES
Pump body - Cast iron
Motor bracket - Aluminium
Impeller - Noryl®
Mechanical seal - Ceramic graphite
Motor shaft - Stainless steel AISI 416
Liquid temperature -  0 - 50 °C
Operating pressure - Max. 6 bar

MOTOR
2 pole induction motor - 1~230v-50Hz
Insulation class -F
Protection - IP44

PUMP DATA
Flow - 60 Lpm
Head - 52 m
Amps - 4.7
kW P1 - 1.02
kW P2 - 0.74
Dimensions -  H195 x W180 x L420 mm
Weight - 17 kg

HIDROMATIC H1 DESCRIPTION
1. Complete replacement of the traditional water system set consisting on pressure switch and pressure tank
2. Control the starting of the electric pump after a pressure decrease (taps opening) and stopping when the fluid flow interrupt at the maximum pressure level of the electric pumps (taps closing)
3. Protection against dry running
4. Starting pressure adjustable during the installation
5. Standard 1”M hydraulic connections
6. Installation in any position - both vertical and horizontal according
to the flow direction
7. Easily replaceable electronic printed circuit board 8. No need of maintenance

HIDROMATIC H1 TECHNICAL DATA
Power supply - 230V ac ± 10% 50/60Hz
Max rated current - 12 A
Starting pressure range - 1 - 3,5 bar
Max pressure - 10 bar
Protection degree - IP65
Max fluid temperature - 55 °C
Max ambient temperature - 55 °C
